ดีลักซ์ มัลติ-เพอร์เพิส



                                             DELUX Multi-purpose



                                     STRUCTURE  AND  COLOR



                                                                                 SPECIFICATION

     DELUX    Multipurpose

Series Features

  • Superior safety and performance
  • For all sports, school, mcompetition,clubs

Scene Graph

Structural Parameters Table

Thickness  EN428

5.0mm

7.0mm

9.0mm

Wearlayer EN429

0.8mm

0.8mm

0.8mm

Standard roll length EN426

15m

15m

15m

Width of roll EN426

1.8m

1.8m

1.8m



Customized thickness  and roll length are available

911-Dark Blue   9102-Ocean Blue   9103-Light Blue   9201-Grass Green   9202-Olive Green

9301-Dark Red   9302-Pink   9303-Orange   9401-Grey

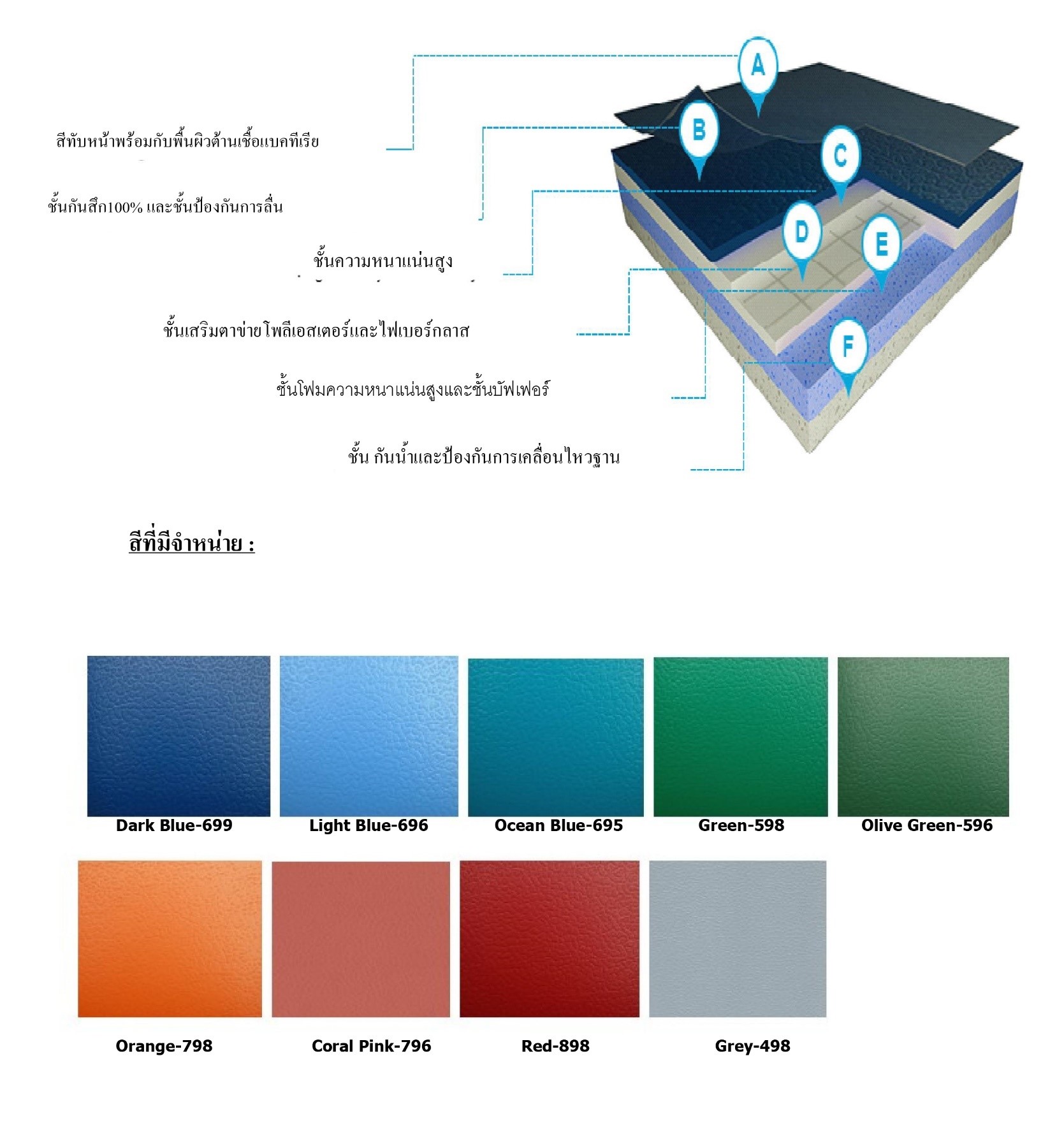

Anti-fouling antibacterial layer

0.8mm 100% high density PVC wear resistance and anti- slip layer

Compression resistance   layer with high density

Polyester mesh stabilizer layer with  high  intensity

Double foam buffer layer with high density

Proflor water-proof and movement resistance bottom





                                         TECHNICAL DATA

Product Specification



Multipurpose Flooring - DELUX

ltem

Standard

Unit

Requirement

Result

Roll Length

EN426

M

---

20 Max

Roll Width

EN426

M

---

1.8

Total Thickness

EN428

MM

---

5mm/7mm/9mm

Sport properties



ltem

Standard

Unit

Requirement

Result

Shock adsorption

EN 14808

%

>25

>25

Vertical deformation

EN 14809

mm

<2

<2

Energy return

EN P90 203

m/s

>0.31

>0.31

Sliding coefficient

EN 13036-4

---

80 to 110

80 to 110

Ball bounce

EN 12235

%

>90

>90

Technical Characteristics



 ltem

Standard

Unit

Result

Abrasion resistance

EN IOS 5470-1

mg

<350

lmpact resistance

EN 1517

N/m

>8

lndentation resistance

EN 1516

mm

<0.5

Fire resistance

EN 13501-1

---

Bfl-s1

Sound insulation

EN ISO 717-2

dB

20-30

Friction coefficient

DIN 18032

0.45-0.6

0.52

Chemical Detection



ltem

Standard

Unit

Requirement

Result

Soluble cadmium limit

GB/T14833-1993

G/M2

<20

0.88

Volatile content

GB/T14833-1993

G/M2

<35

5.28

Vinyl chloride monomer

GB/T14833-1993

MG/KG

<5

0.52

Soluble pb limit

GB/T14833-1993

MG/KG

<20

0.63

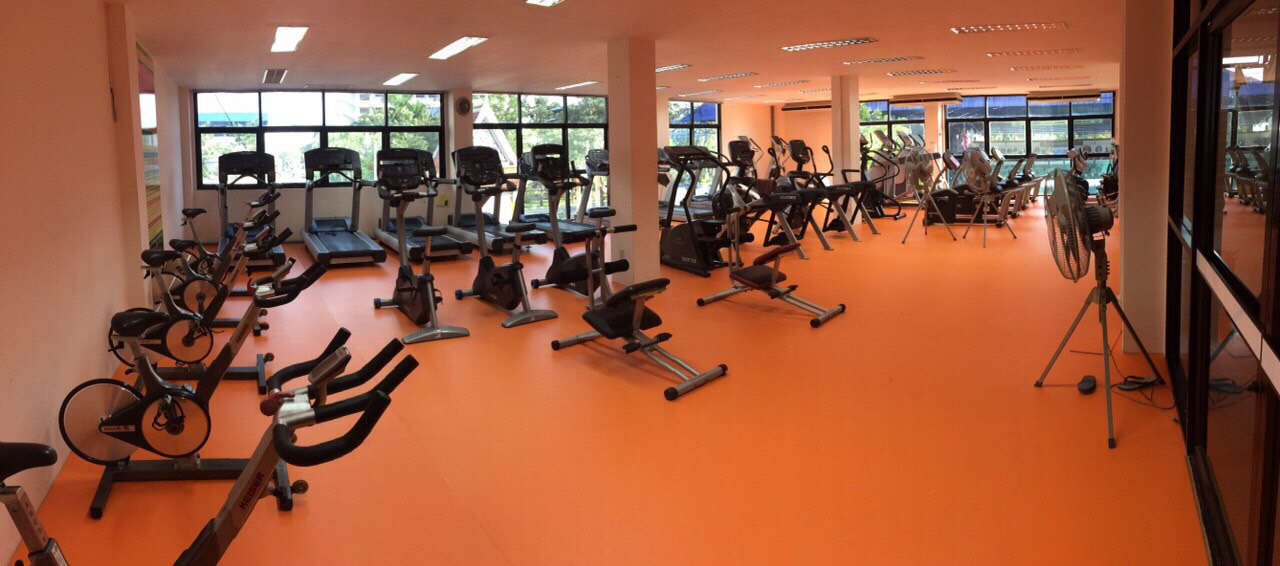

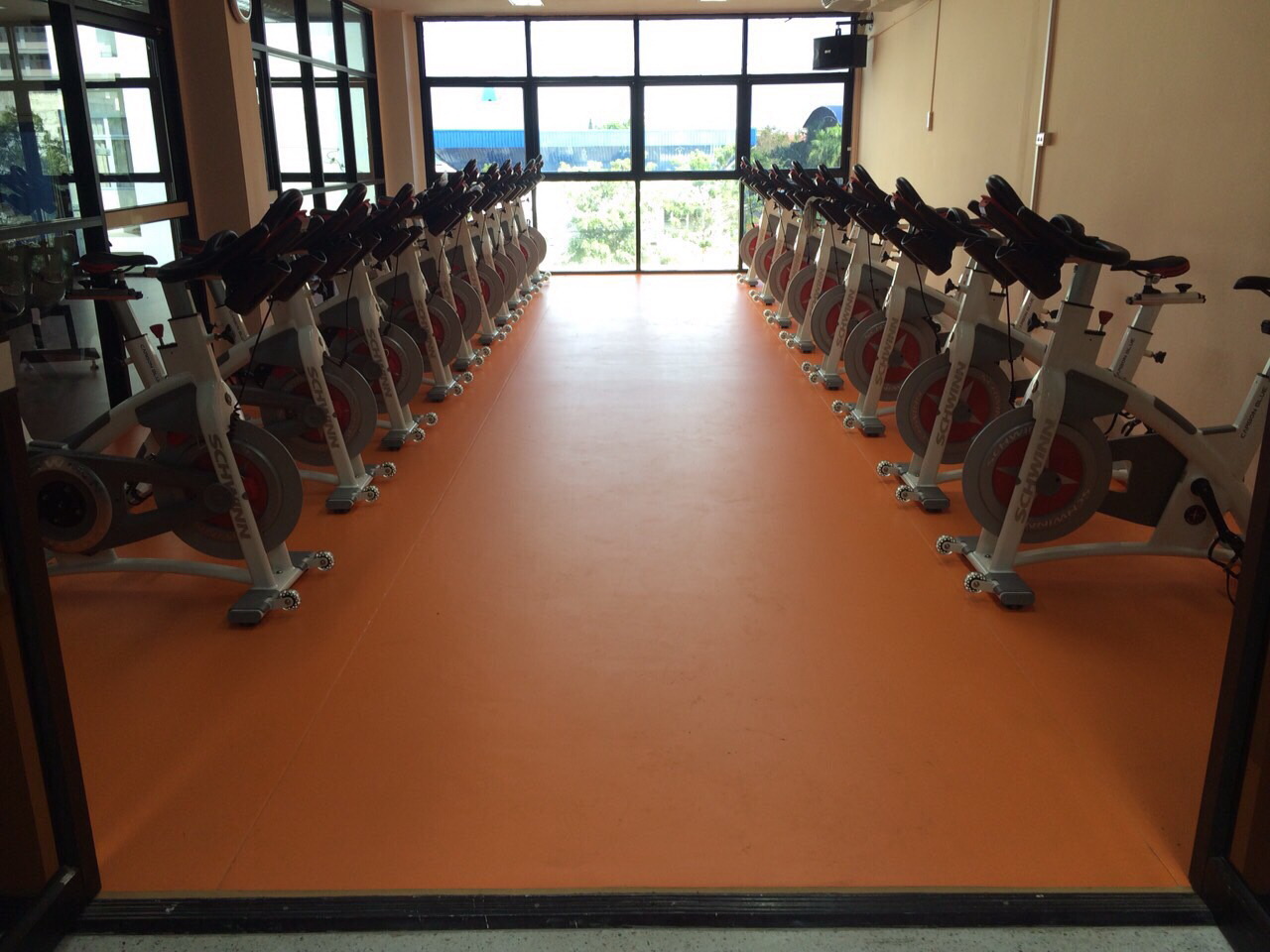

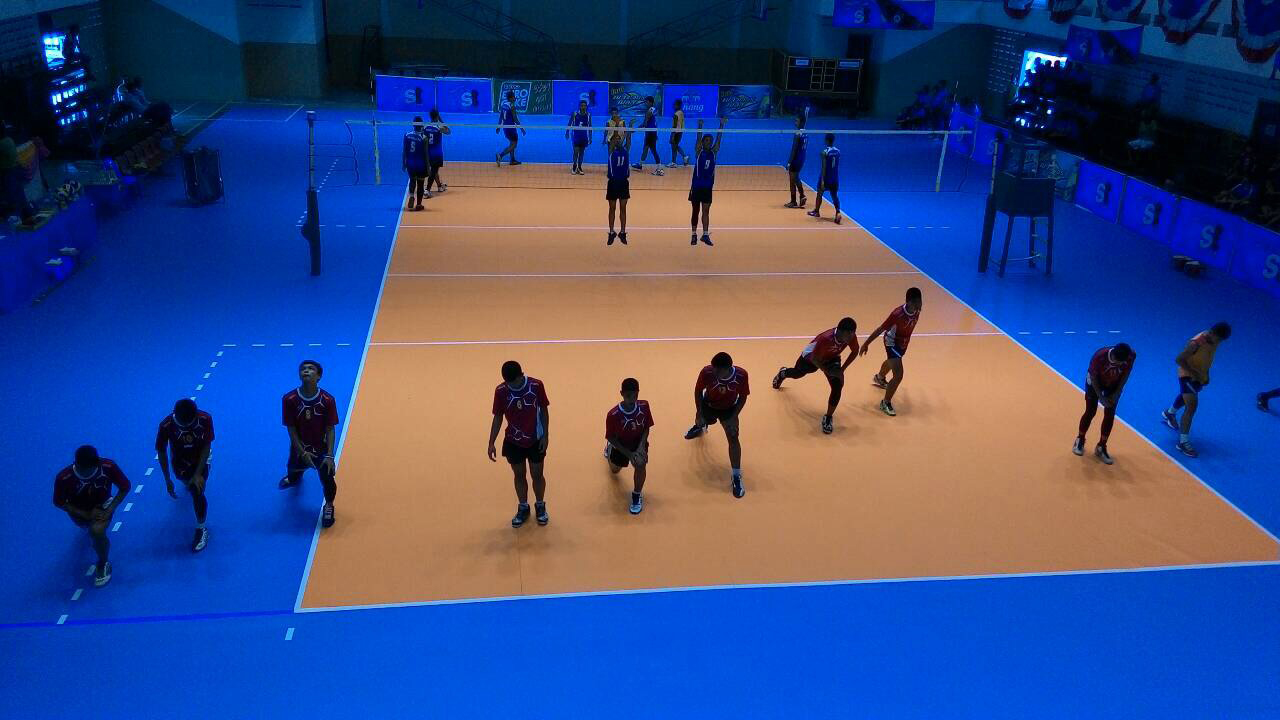

                                                                             PROJECT REFERANCE
